TRAXXAS ... TRX 2.5R W/PS IPS SHAFT T-MAXX
TRAXXAS ... TRX 2.5R W/PS IPS SHAFT T-MAXX



PSH Price: $169.95

Quantity in Stock:1

Product Code: TRA5207R

Description

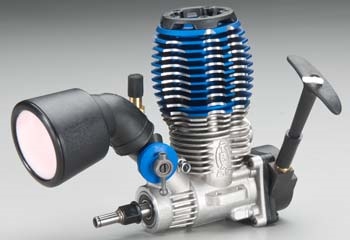

This is the Traxxas 2.5R Racing Engine with IPS
                 (Integrated Pilot Shaft) and Pull-Start.
        For use in all Traxxas vehicles that use the TRX 2.5 engine.

** This engine is a .15 engine. The 2.5 refers to a measurement of Cubic **
   Centimeter displacement compared to Cubic Inch displacement (.15).
                60% More Power that the TRX Pro .15 engine!
 Loaded with advanced features such and the free-flowing rear exhaust, the
 unique composite slide carb, and innovative porting only found on the most
                         exotic racing engines.

FEATURES: Slide carburetor provides less restrictive, straight through airflow
           for more power and better throttle response.
         PowerTune head is machined from aluminum which promotes even heat
          distrubution for stable engine temperatures and rock-solid tuning
         New sleeve for improved engine efficiency and better power.
         Molded head protector prevents damage to the head and secures the
           glow plug wire.
         Ultra-low restriction air filter provides superior air flow and
           filtration for more power and a long engine life.
         Offset wrist pin further reduces piston slide loading for more
           even cylinder wear and longer engine life.

INCLUDES: One 2.5 (0.15cu in) Engine with Pull Starter w/flywheel nut
         One 90 degree air filter (includes base for upright mounting)
         One 22 chapter Engine Set-up DVD
         One Owners manual/instruction booklet
         One bottle of air filter oil
         One Decal sheet
         One pre-installed glow plug

REQUIRES: Muffler (exhaust system) depending on vehicle
         Starting equipment
         Traxxas 10-20% "Top Fuel" nitro fuel. TRAP5010 or TRAP5020

SPECS:    Displacement:                                   0.15 cu in (2.49cc)
         Crankshaft Thread:                                 5mm (.197")
         On-Center Mounting Holes, Front to Rear:          11mm (.433")
         On-Center Mounting Holes, Side to Side:         31.4mm (1.24")
         Back of engine(recoil)to front of drive washer: 73.2mm (2.88")
         Height:                                         97.3mm (3.83")
         Exhaust Port Diameter:                  inner -  9.9mm (.392")
                                                 outer - 13.0mm (.512")
